3M™ Thinsulate™ Van Insulation Kit for 2007+ Mercedes Sprinter
3M™ Thinsulate™ Van Insulation Kit for 2007+ Mercedes Sprinter
- Fully secure checkout
- Trusted by thousands
- Rated and reviewed
Note: Please allow 1-2 weeks before shipping.
Need a Thinsulate insulation kit for your Sprinter camper van conversion? This pre-cut 3M™ Thinsulate™ Van Insulation Kit for Mercedes Sprinter gives you all the insulation you'll need for your Mercedes Sprinter camper van in one easy, ready-to-install bundle. This Thinsulate van insulation has been precisely cut to conform to the interior cavities in your Mercedes Sprinter cargo van.

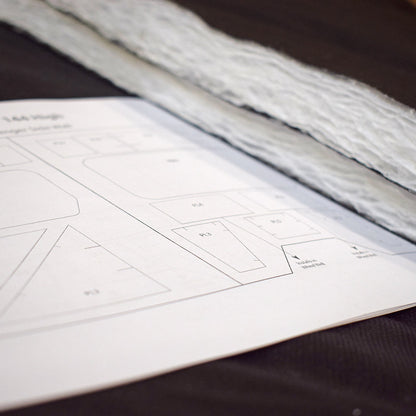

Using this pre-cut van insulation kit will save you lots of time trying to cut Thinsulate insulation to size to fit all the irregular nooks and crannies inside your Sprinter van interior. The insulation kit comes with a diagram that shows the correct location for all the Sprinter camper van insulation pieces.
This insulation kit is designed to fit 2007+ Mercedes Sprinter cargo vans, including:
- Low and High roof 2007+ Mercedes Sprinter 144"WB vans
- High-roof 2007+ Mercedes Sprinter 170"WB and 170" extended vans
Use the drop-down to select the model of Sprinter van you have.
Note: Includes precut material to cover cargo area ceiling, walls, and doors open cavities. If you have windows, you'll have extra pieces. Does not include material for cab area or any portion of the vehicle floor. Does not include material to stuff between beams, fully covered cavities, or partially covered cavities. The Kit focuses on the main large cavities/open sections for 2007+ Mercedes Sprinter cargo vans.
3M™ Thinsulate™ is a unique non-woven acoustic absorber composed of polyester and polypropylene fibers. The polypropylene fibers are extremely fine, producing a high-energy absorption characteristic with low weight. The polyester fibers are added to strengthen the web, while the scrim protects and contains the fibers. The fine microfibers absorb high frequency noise, and the thicker fibers provide recovery and loft. It is compressible, lightweight, and conformable.
FREE SHIPPING on this item in the lower 48 US states.
Key Features: 3M™ Thinsulate™ Van Insulation Kit for Mercedes Sprinter
- Made to fit Mercedes Sprinter cargo vans vans, including the low-roof and high-roof Mercedes Sprinter 144"WB, high-roof Mercedes Sprinter 170"WB and 170EXT cargo van models.
- Delivers more acoustic absorption per unit weight vs. competitive products
- Extremely lightweight, helps your van conversion build stay light and efficient
- Non-woven sound-absorbing fibers create a quieter vehicle environment
- Hydrophobic fibers resist moisture, mold and mildew
- Fibers are contained in a double black, double embossed scrim.
Specifications: 3M™ Thinsulate™ Van Insulation Kit for Mercedes Sprinter
| Type | 3M Thinsulate AU6002 |
| Fire Resistance | Certified to FMVSS 302 standard for fire-resistance |
| Roll Width | 60" |
| Thickness | 44mm |
| Density | 16.1 kg/m3 |
| R-Value | 5.45 per inch (RSI 0.96) |
| Quiet | 3M™ Thinsulate™ has highly efficient acoustic absorption, particularly in middle- to high-frequency ranges. |
| Light | Thinsulate acoustic insulation products are made from lightweight polyester and polypropylene non-woven fibers. |
| Easy to Install | Lightweight and easy to handle compared to other insulation materials. Can easily be die-cut, heat sealed, and thermally or sonically bonded to many other substrates. |
| Mold, Mildew and Moisture Resistant | 3M™ Thinsulate™ has exceptional moisture resistance, no need to install an additional waterproof layer. 3M™ Thinsulate™ is also resistant to mildew growth, minimizing the risk of offensive odors. |
Video: 3M™ Thinsulate™ Van Insulation Kit for Mercedes Sprinter
FAQs
What is the R-value of Thinsulate insulation?
3M Thinsulate insulation has an R-value of 5.45 per inch (RSI 0.96). This high thermal resistance rating makes it highly effective at regulating temperature inside your van, keeping you warm in winter and cool in summer while remaining lightweight and compressible.
What is 3M Thinsulate thermal insulation?
3M Thinsulate is a unique non-woven acoustic absorber made from polyester and polypropylene fibers. The fine microfibers absorb high-frequency noise while thicker fibers provide recovery and loft. It is lightweight, compressible, conformable, and certified to FMVSS 302 fire-resistance standards.
What's the best insulation for a Sprinter van camper?
3M Thinsulate is widely considered the best insulation for Sprinter van conversions. It offers superior acoustic absorption per unit weight, resists moisture, mold, and mildew without needing an additional waterproof layer, and its lightweight design keeps your van build efficient and easy to handle.
How do you insulate a Mercedes Sprinter for van conversion?
Start with a pre-cut 3M Thinsulate insulation kit designed specifically for your Sprinter model. The kit includes pieces precisely cut to fit your van's interior cavities, plus a diagram showing correct placement. Install the insulation in the ceiling, walls, and door cavities before adding wall panels and finishing materials.
What is included in a Sprinter van insulation kit?
The 3M Thinsulate Sprinter Van Insulation Kit includes pre-cut insulation pieces to cover your cargo area ceiling, walls, and door open cavities. It also includes a placement diagram for easy installation. The kit fits 144"WB, 170"WB, and 170" extended Mercedes Sprinter cargo vans from 2007 and newer
