VWD Universal Awning Bunk Window (AW3310)
VWD Universal Awning Bunk Window (AW3310)
**Available for install
Interested in installation services? Schedule a call
- Fully secure checkout
- Trusted by thousands
- Rated and reviewed

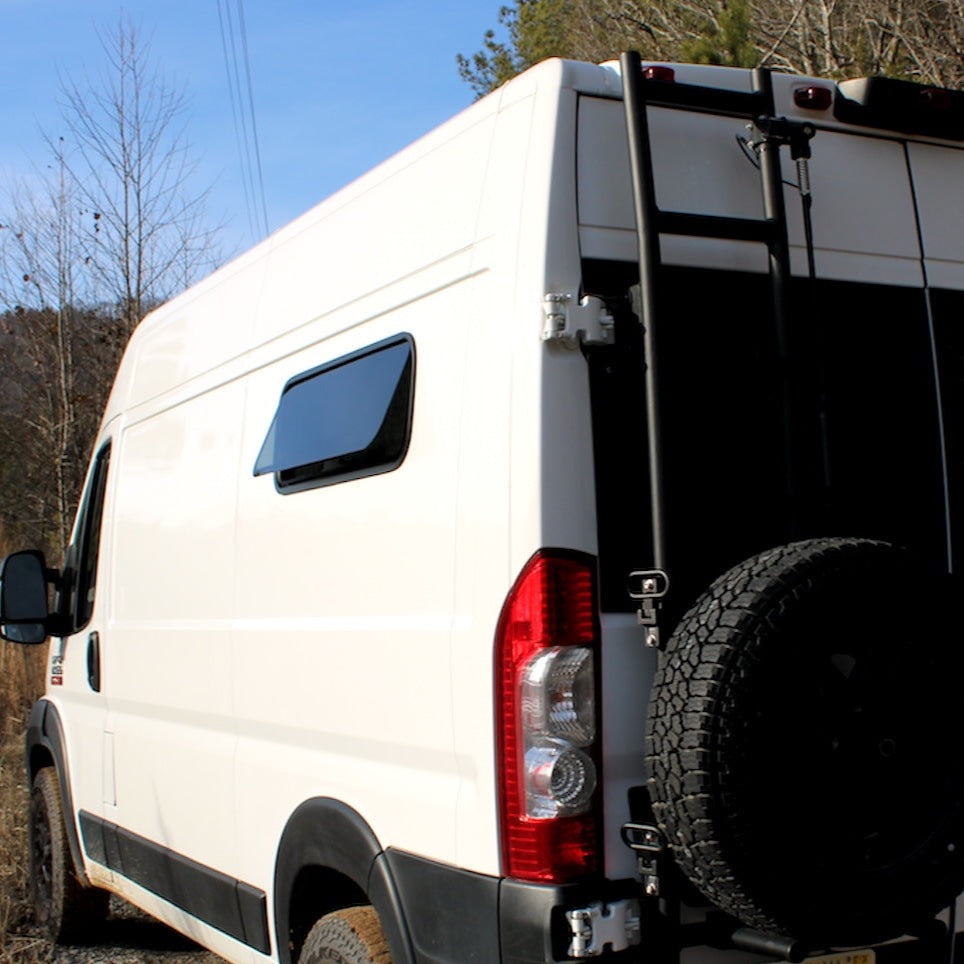

The VWD Awning Bunk Window is a tilt-out van bunk window that allows excellent ventilation for your camper van.

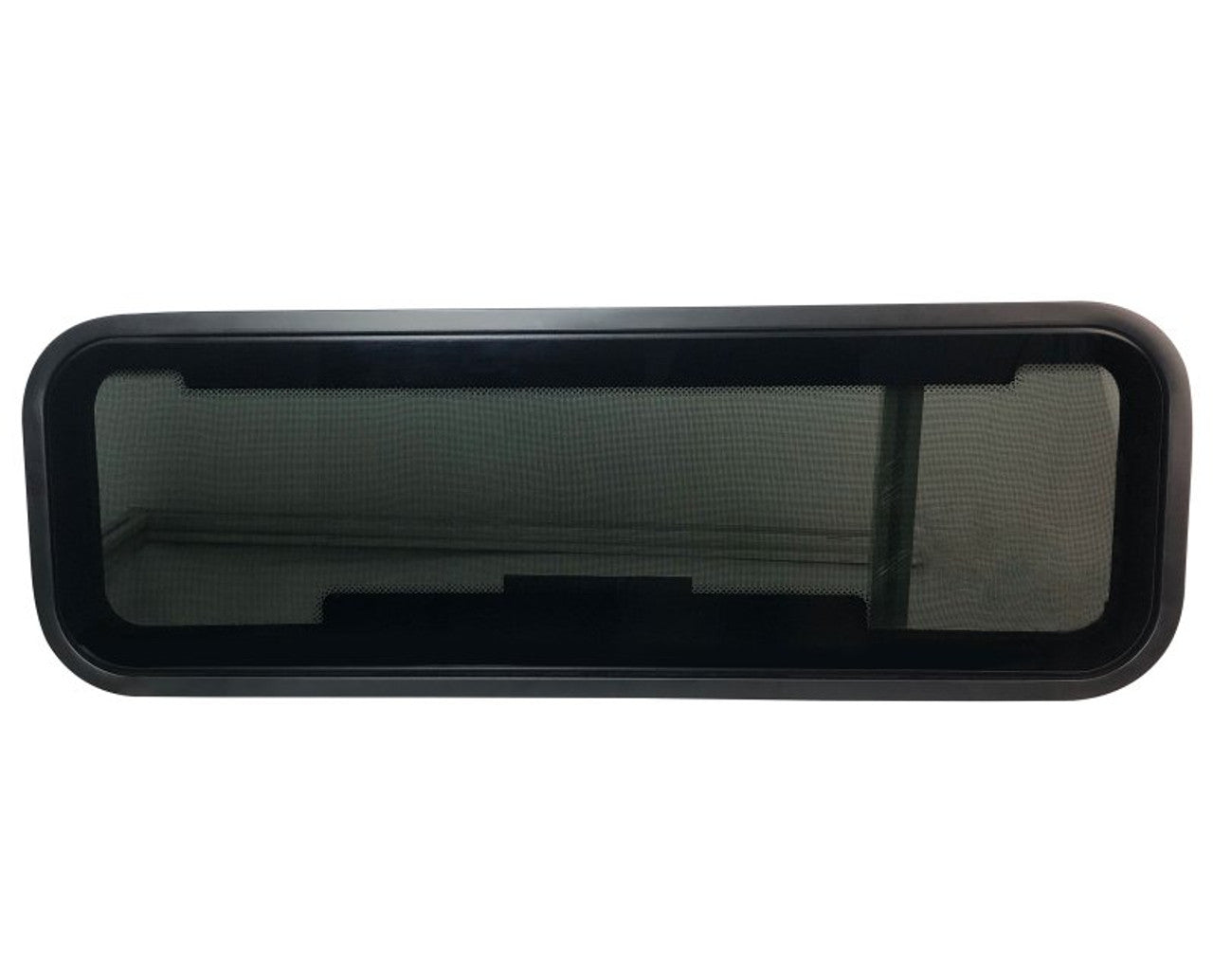

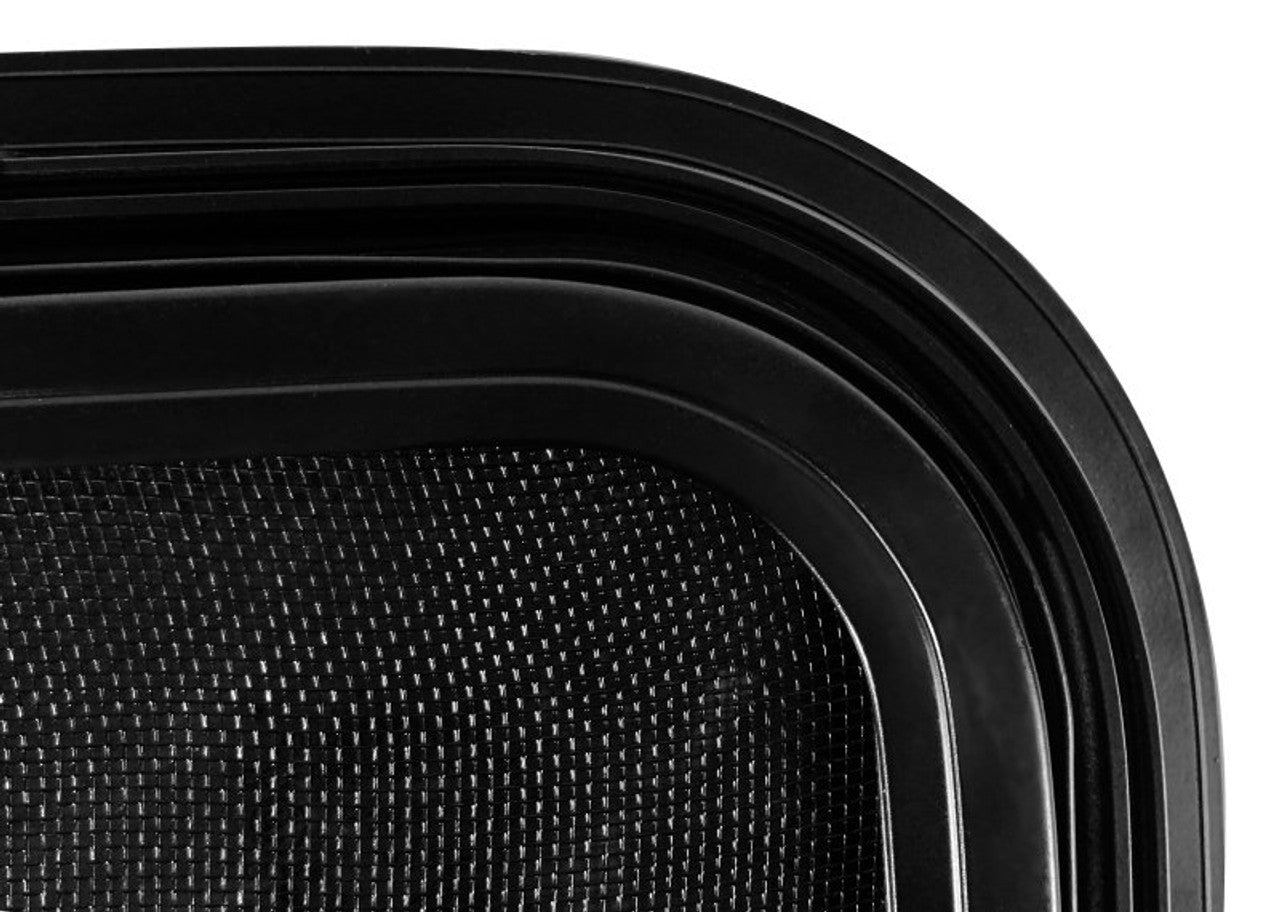

This bunk window is an easy-to-install flat awning crank-out window that features a removable screen and measures 34-3/4" long and 11-3/4" tall. The window is crafted with solar privacy glass and features an upgraded 3M UV-coated foam seal for increased longevity and a more reliable weather-tight seal compared to competitive models.

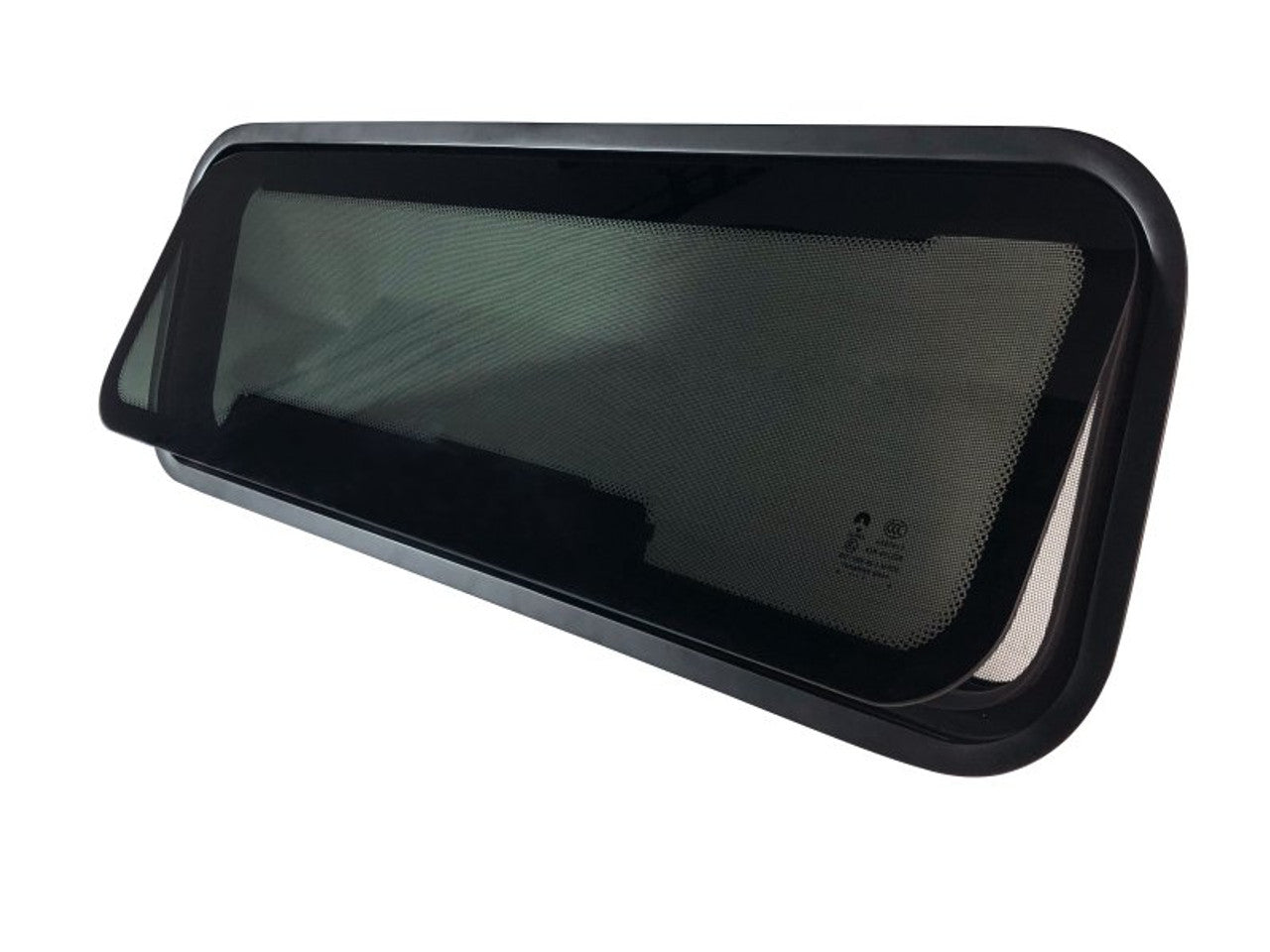

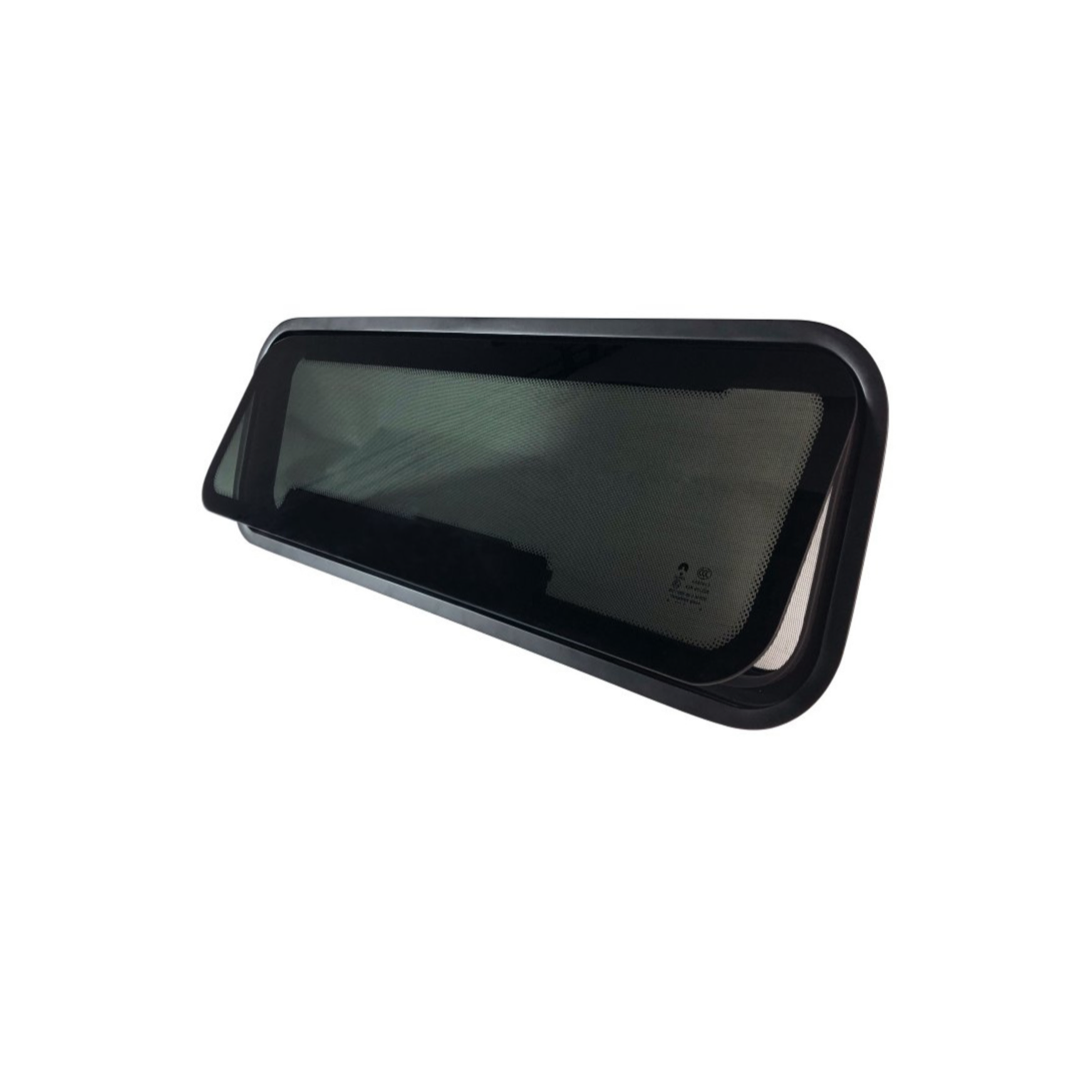

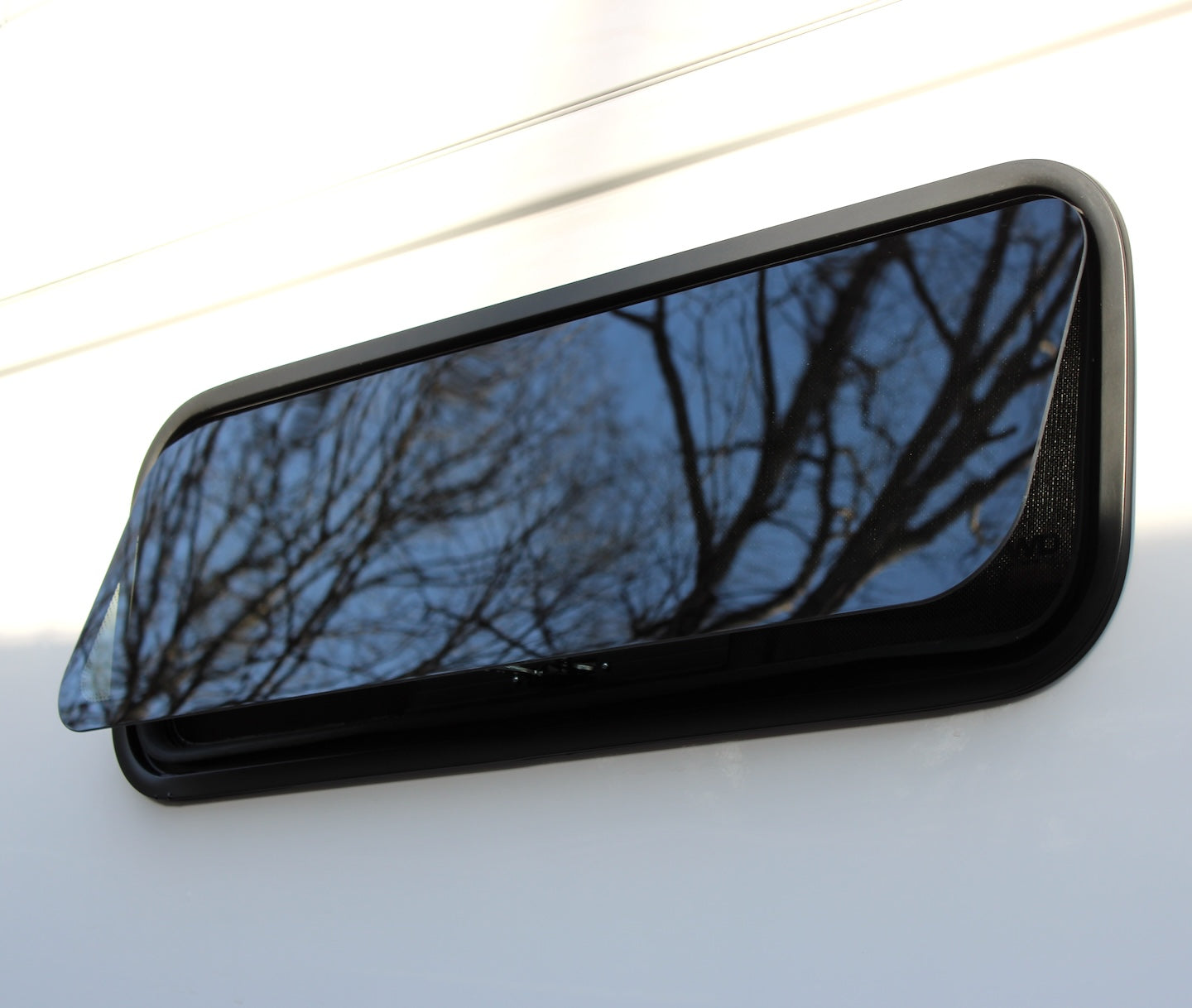

The awning tilts out 3", allowing air to flow through the massive 31-1/4" x 8-1/4" opening enabling some of the best ventilation for a bunk window.
Key Features: VWD Universal Awning Bunk Window (AW3310)
- Universal Fit
- Color = Matte black powder coat frame
- Solar privacy glass
- Matte black powder coat frame
- UV Rating = 17%
- Installation Type = Clamp Ring
- Mfg Country = China
- Mfg Warranty = 1 Year
- Outside Frame Dimensions: 34-3/4" x 11-3/4"
- Cut-Out Dimensions: 33-5/8" x 10-5/8"
- Clamp Ring Size: 1/8"
- Alternative to CRL AW1033
What’s needed to install a clamp-in window?
- Bunk window
- Gasket (included with window)

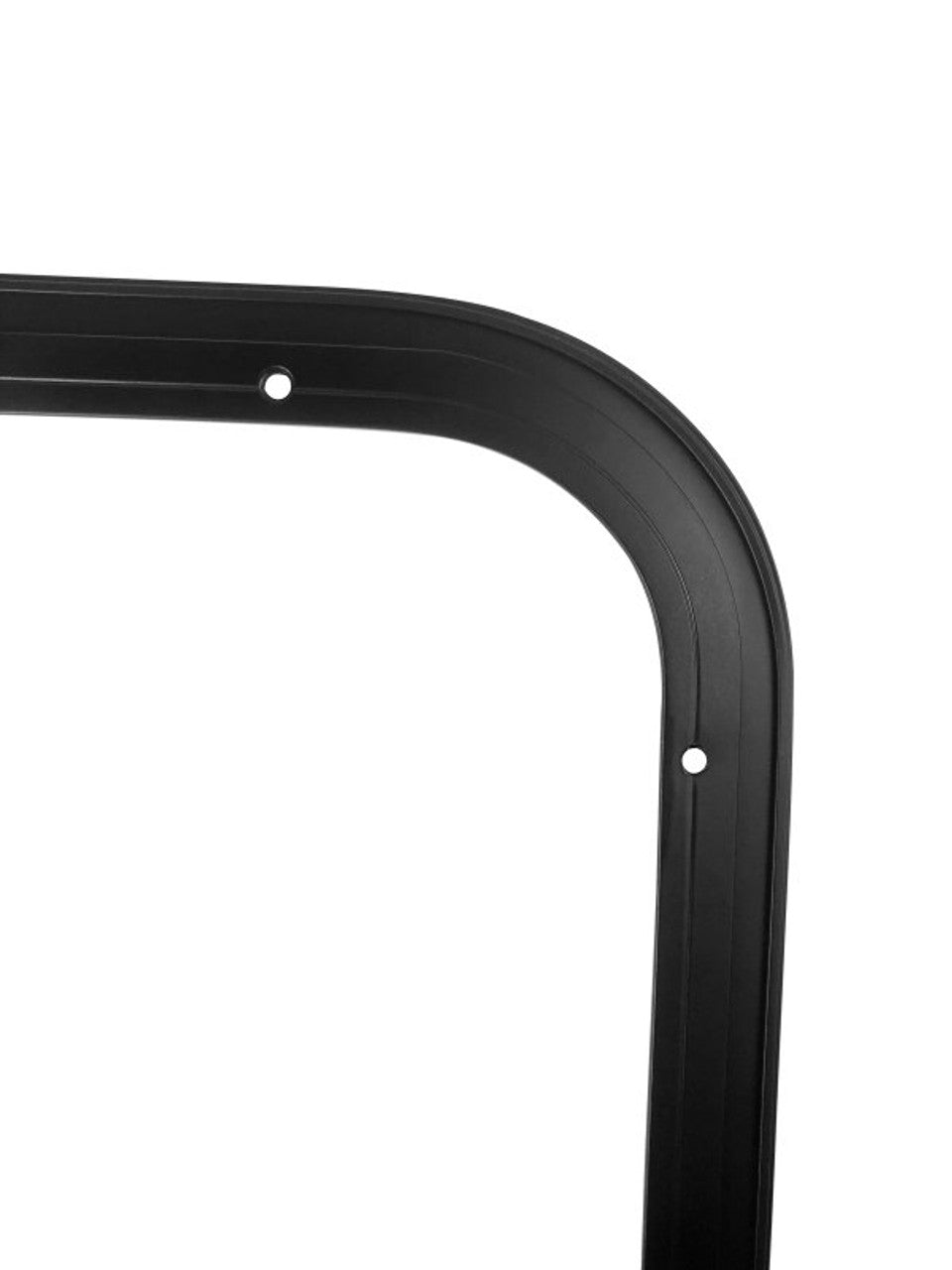

- Clamp ring (included with window)
- Screws (included with window)
- Bunk window template
- Drill & metal drill bits(1/8” max)
- Philips screw driver (hand-tighten all screws)
- Step bit (3/8”-1/2” at least)
- Jigsaw with fine metal blade
- Foam or bristle paint brush
- Auto paint/primer
- Plastic/paper drop-cloths
- Blue painter’s tape
- Safety:
- Gloves
- Eye protection
- Hearing protection
- Face mask
- Long-sleeved shirt
Check out our VAN WINDOWS DIRECT AW3310 CLAMP-IN BUNK WINDOW INSTALL GUIDE for a guide on installing clamp-in bunk windows.
Specifications: VWD Universal Awning Bunk Window (AW3310)
| Outside Frame Dimensions: | 34-3/4" x 11-3/4" |
| Cut-out Dimensions: | 33-5/8" x 10-5/8" |
| Weight (lbs.): | 15 |
| Tint: | 17% UV tinting |
| Window Type: | Fixed Awning with Screen (Clamp-in) |
| Fits: | All van models, universal placement |
Video: Universal Clamp-In Windows
Below are videos showing a guideline of how to install clamp-in windows with 1/8" clamp rings. The same method can be applied to almost any clamp-in window, but be sure to measure your clamp ring inner dimensions and compare to your template before making the cutout.
